Insulation Highland barley paper 18650 21700 lithium battery hollow insulating paper gasket high temperature motor green shell paper
Подробная информация о продукте:
| Место происхождения: | КИТАЙ |
| Фирменное наименование: | XWELL |
| Сертификация: | CE |
| Номер модели: | Изолирующая высокогорная ячменная бумага |
Оплата и доставка Условия:
| Количество мин заказа: | 1 шт |
|---|---|
| Цена: | USD $0.1~$1000 |
| Упаковывая детали: | Картон |
| Время доставки: | 5-7 дней |
| Условия оплаты: | T/T, Western Union, L/C, D/A, D/P. |
| Поставка способности: | 100000 ПК в месяц |
|
Подробная информация |
|||
| Толщина: | 0,1 | 0,2 | 0,3 | 0,4 | 0,5 | Обычай | Номер модели: | Обратитесь к списку моделей ниже |
|---|---|---|---|
| Название продукта: | Грамовая бумажная лента ячменя | Цвет: | Cyan |
| Толщина (мм): | 0,1 | 0,2 | 0,3 | 0,4 | 0,5 | Обычай | Ширина (мм): | От 1 мм до 1000 мм | Обычай |
| Длина (м): | 50 | 100 | 200 | 300 | Обычай | Приложение: | 18650 21700 26650 батарея |
| Выделить: | Highland Barley Paper Tape for lithium battery,18650 battery barley paper tape,21700 lithium battery adhesive tape |
||
Характер продукции
Insulation Highland barley paper 18650 21700 lithium battery hollow insulating paper gasket high temperature motor green shell paper
Product Overview

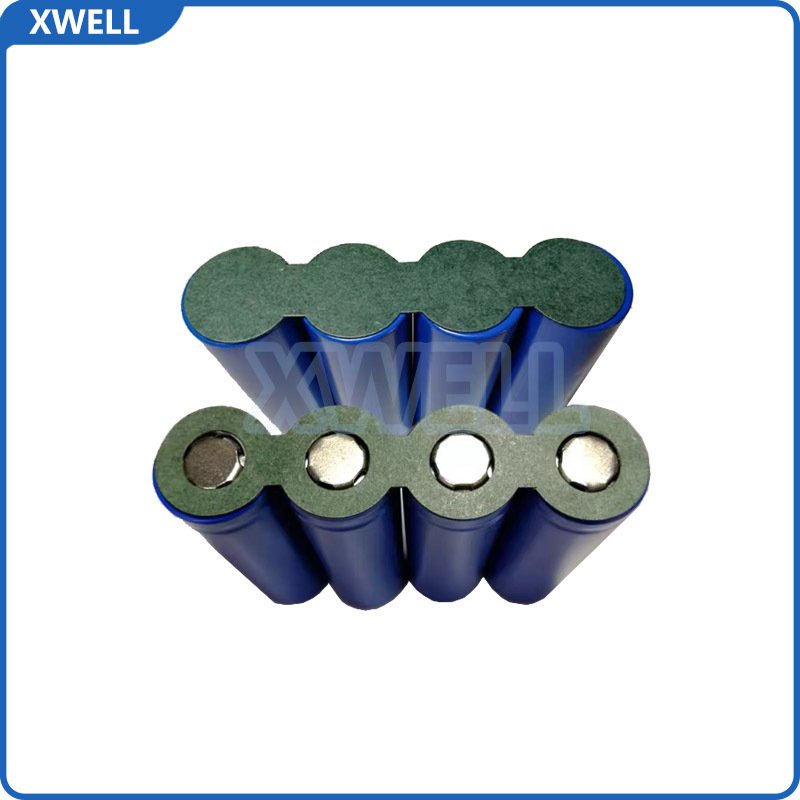

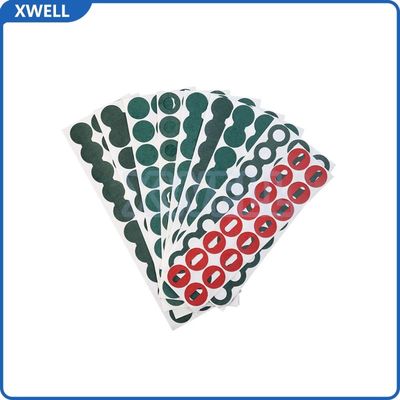

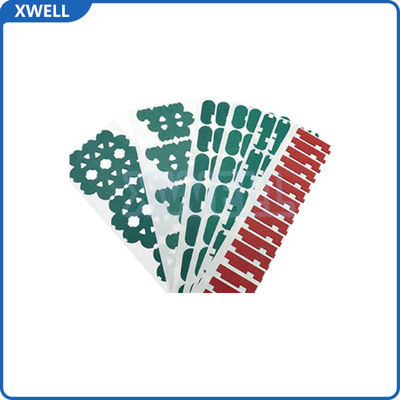

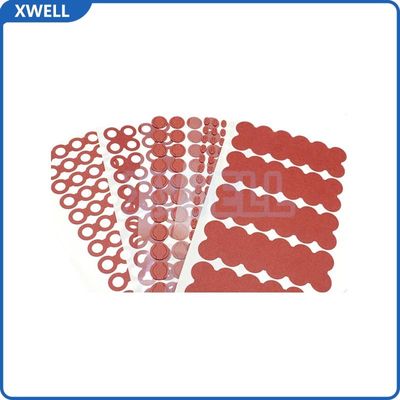

Our Insulation Highland Barley Paper is made laminating a polyester film to one layer of insulation paper. The product can be supplied cut in rolls, sheets or die-cut pieces according to customer specs. ideal for 18650/21700 lithium batteries as hollow insulating gaskets. Also fits high-temperature motors. Features green shell, offers reliable insulation, perfect for battery protection.
Key Features
- Universal Compatibility: Designed specifically for 18650/21700 lithium batteries as hollow insulating gaskets, with additional applications in high-temperature motors.
- Precision Engineering: Manufactured to standard specifications for reliable insulation, eliminating the need for additional cutting while effectively preventing current leakage.
- Thermal Stability: Maintains consistent performance under high-temperature conditions, ensuring safe operation of electrical equipment.
Technical Specifications
| Properties | Units | Values |
|---|---|---|
| Nominal thickness | mm | 0.15 | 0.18 | 0.20 | 0.23 | 0.25 | 0.3 | 0.35 |
| Thickness tolerance | mm | ±0.02 | ±0.03 | ±0.03 | ±0.03 | ±0.03 | ±0.03 | ±0.04 |
| Grammage and tolerance | g/m² | 140±20 | 190±28 | 220±33 | 260±39 | 300±45 | 350±52 | 425±63 |
| Film Nominal Thickness | mm | 0.05 | 0.075 | 0.1 | 0.125 | 0.15 | 0.19 | 0.25 |
Primary Applications
- Battery Safety: Prevents insulation wear and short circuits that could lead to battery fires
- Component Protection: Serves as a durable spacer between metal components
- Extended Lifespan: Reduces wear and tear to prolong battery service life
Quality Assurance
- Compliant with UL and IEC electrical insulation standards
- Custom colors and sizes available for OEM requirements
- Competitive bulk pricing for large volume orders
