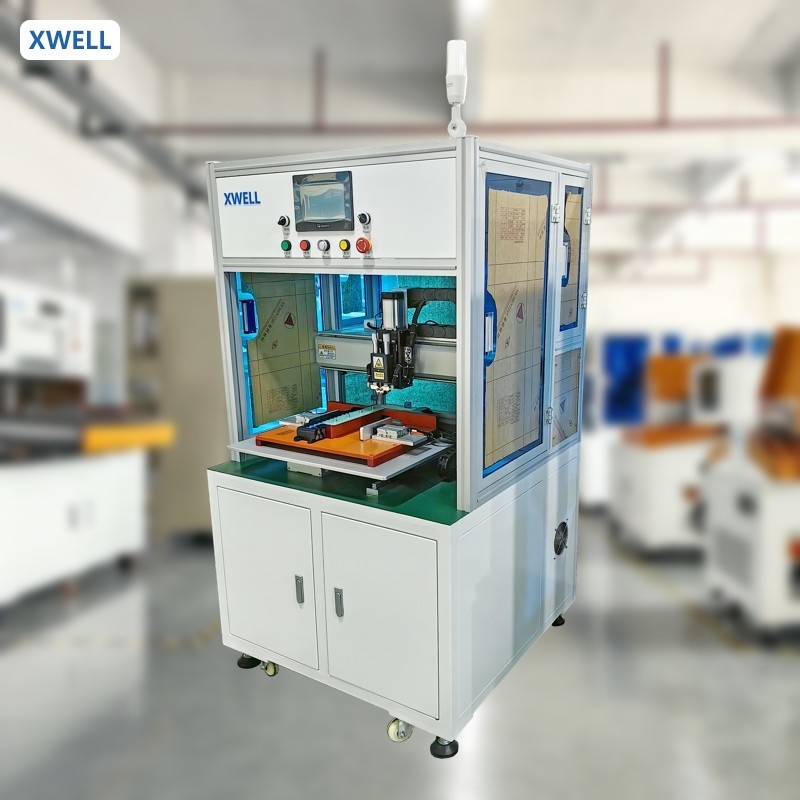

8000A Transistor Power Supply Single Sided Automatic Battery Spot Welding Machine With PC
Подробная информация о продукте:
| Место происхождения: | Китай |
| Фирменное наименование: | XWELL |
| Сертификация: | CE |
| Номер модели: | MD-ADW |
Оплата и доставка Условия:
| Количество мин заказа: | 1 шт. |
|---|---|
| Цена: | USD 11000 - 15000 / pcs |
| Упаковывая детали: | Деревянный ящик |
| Время доставки: | 10-15 дней |
| Условия оплаты: | Т/Т, Вестерн Юнион, Л/К |
| Поставка способности: | 100 шт в месяц |
|
Подробная информация |
|||
| Типы батарей: | Цилиндрическая клетка | Головной номер: | 2 шт |
|---|---|---|---|
| Операционная система: | Врезанная система | Пользовательский интерфейс: | Сенсорный экран |
| Источник питания: | 5000A / 8000A / 10000A необязательно | Эффективность: | 3800 штук/час |
| Движение оборудования: | 500*350 (мм) около 760 18650 клеток | Максимальная грузоподъемность: | 200-400 штук (стандартная 18650 литийная батарея) |
| Операционная система: | встроенная система + экран человека-машины | Режим передачи: | Шаг + ремень + импортная точная линейная проводная рельса (необязательно серво + винт) |
| Выделить: | 8000A transistor spot welder,single-sided battery spot welding machine,PC-controlled lithium spot welder |
||
Характер продукции
8000A Transistor Power Supply Single Sided Automatic Battery Spot Welding Machine With PC
Products Description
MD-ADW is suitable for battery pack spot welding and assembly in the factory for 14500 / 18650 / 21700 / 26650 / 32700/33140 multi-parallel multi-series combination.It can be used in electric tool battery, torsion car battery, Energy Storage Battery Pack, Scooter Electric Vehicle Battery, etc. Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved. Humanized design makes the operation and debugging very easy and convenient. Design of components built-in makes appearance more concise.
Features
- Support breakpoint start, automatic start, and manual start.
- Easy program, support matrix, array and point program, can store 100 group parameters.
- Welding needle abrasion alarm.
- Build-in welding current monitor, can display real time welding current.
- Design for NB, Power Tool, Gardening Tool, High Power, Energy Storage battery, Electric Motor Car Battery Pack, and other
- lithium battery packs spot welding.
- Can be matched with the production line of lithium battery group.
- Can store dozens process of different battery packs product, switching products without re-setting parameters.
- Can match a variety brand of spot welders.
Product Specification
SPECIFICATIONS FOR MD-ASW AND MD-ADW | |||
| MD-ASW | MD-ADW | ||
Welding Head Number | 1 | 2 | |
Travel | X: 400mm; Y: 400mm | Y: 500mm; Z: 350mm | |
Welding Spped | 0.5s/spot, 2000-2500pcs/h | 0.5s/spot, 3500-4000pcs/h | |
Welder Power Suppler | 5000A Inverter Spot Welder | ||
Max Motor Speed | 1000mm/s | ||
Max Battery Number | 450 pcs (18650) | ||
Operate System | Embedded system | ||
User Interface | Touch screen | ||
Drive Mode | Step motor and precision guide rail | ||
Power Supply | 220V/50Hz(machine); 3 phase, 380V/50Hz(Welder) | ||
Air Pressure | 0.3-0.6 MPa | ||
Machine Size | 900L*900W*1750Hmm | 1100L*900W*1930Hmm | |
Machine Weight | 200kg | 350kg | |
Product Application
MD-ADW can be used in electric tool battery, torsion car battery, Energy Storage Battery Pack, Scooter Electric Vehicle Battery, etc. Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved.
Product Operation
1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, the machine automatically complete all welding actions.
4. The welder sound to prompt operator replacement of new fixture (battery pack).
Double side spot welder details
Cylindrical battery pack welding samples
