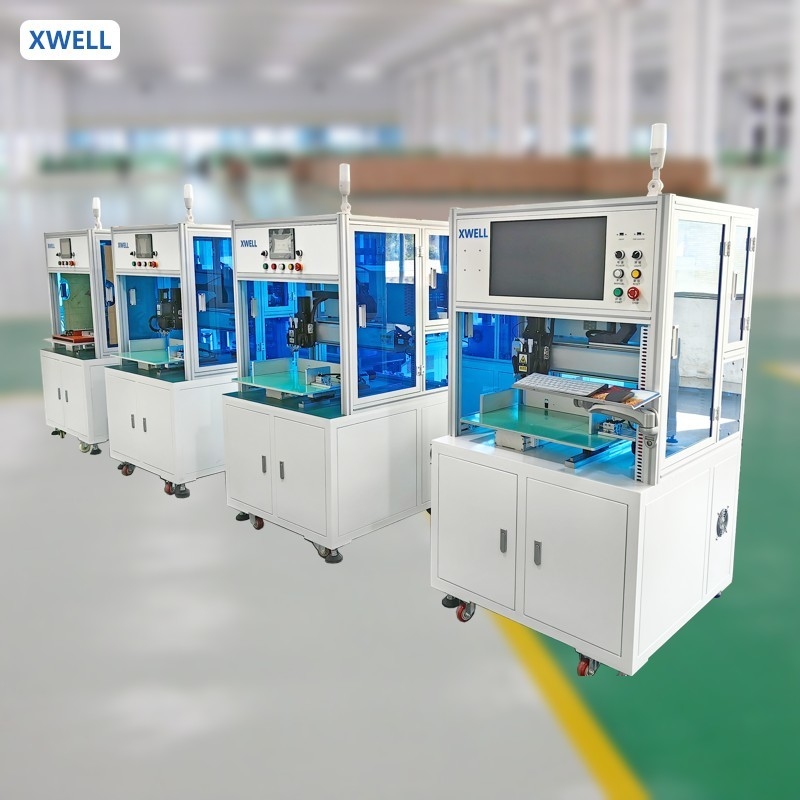

Tab Type Lithium Battery Spot Welder Cylindrical Core Single Side Automatic Spot Welder
Подробная информация о продукте:
| Место происхождения: | Китай |
| Фирменное наименование: | XWELL |
| Сертификация: | CE |
| Номер модели: | MD-ADW |
Оплата и доставка Условия:
| Количество мин заказа: | 1 шт. |
|---|---|
| Цена: | USD 11000 - 15000 / pcs |
| Упаковывая детали: | Деревянный ящик |
| Время доставки: | 10-15 дней |
| Условия оплаты: | Т/Т, Вестерн Юнион, Л/К |
| Поставка способности: | 100 шт в месяц |
|
Подробная информация |
|||
| Типы батарей: | Цилиндрическая клетка | Головной номер: | 2 шт |
|---|---|---|---|
| Операционная система: | Врезанная система | Пользовательский интерфейс: | Сенсорный экран |
| Источник питания: | 5000A / 8000A / 10000A необязательно | Эффективность: | 3800 штук/час |
| Движение оборудования: | 500*350 (мм) около 760 18650 клеток | Максимальная грузоподъемность: | 200-400 штук (стандартная 18650 литийная батарея) |
| Операционная система: | встроенная система + экран человека-машины | Режим передачи: | Шаг + ремень + импортная точная линейная проводная рельса (необязательно серво + винт) |
| Выделить: | tab type lithium battery spot welder,cylindrical core spot welding machine,automatic single side spot welder |
||
Характер продукции
Tab Type Lithium Battery Spot Welder Cylindrical Core Single Side Automatic Spot Welder
Main functions:
Cylindrical single-sided automatic welding of the cylindrical cells
The cylindrical battery pack is automatically welded with BMS PCB nickel pad
Product characteristics:
♦ The warranty has the warranty is two years
♦ Equipment debugging is easy to learn easy to understand, change the model speed is fast
♦ The device has three spot welding data input, array input and U disk input
♦ Point welding specification welding can be set (different current welding for positive and negative electrodes)
♦ Current is too small or abnormal machine automatic alarm and stop operation during welding
Product Specification
|
SPECIFICATIONS FOR MD-ASW AND MD-ADW
|
|||
| MD-ASW | MD-ADW | ||
|
Welding Head Number
|
1
|
2
|
|
|
Travel
|
X: 400mm; Y: 400mm
|
Y: 500mm; Z: 350mm
|
|
|
Welding Spped
|
0.5s/spot, 2000-2500pcs/h
|
0.5s/spot, 3500-4000pcs/h
|
|
|
Welder Power Suppler
|
5000A Inverter Spot Welder
|
||
|
Max Motor Speed
|
1000mm/s
|
||
|
Max Battery Number
|
450 pcs (18650)
|
||
|
Operate System
|
Embedded system
|
||
|
User Interface
|
Touch screen
|
||
|
Drive Mode
|
Step motor and precision guide rail
|
||
|
Power Supply
|
220V/50Hz(machine); 3 phase, 380V/50Hz(Welder)
|
||
|
Air Pressure
|
0.3-0.6 MPa
|
||
|
Machine Size
|
900L*900W*1750Hmm
|
1100L*900W*1930Hmm
|
|
|
Machine Weight
|
200kg
|
350kg
|
|
Product Application
MD-ADW can be used in electric tool battery, torsion car battery, Energy Storage Battery Pack, Scooter Electric Vehicle Battery, etc. Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved.
Product Operation
1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, the machine automatically complete all welding actions.
4. The welder sound to prompt operator replacement of new fixture (battery pack).
Double side spot welder details
Cylindrical battery pack welding samples
